FRP-02

FRP-02

Description

This product is widely used in composite suspension long rod insulator, composite post insulator, composite cross-arm insulator, composite drop switch insulator, disconnector, wind deflection of composite insulator, spacer composite insulator, composite insulator for electric railway overhead contact line and other composite insulator industry. The product quality we manufacture for our clients is said to meet  IEC 61109、DL/T 810、GB/T 13096-1、GB/T 775.3、JB/T 5892-91 and other related technical requirements.

We specialise on  fiber glass products, which include the fiber glass rods, fiber glass tubes, fiber glass sheet as well as various fiber glass profiles like the fiber glassI beam,fiber glass channel,fiberglass angle, etc.  Pultrusion process is a kind of method to make continuous composite profiles, which use the twist-less roving on the creel with other continuous reinforced composites, polyester surface mat to proceed the resin impregnation, and then keep the forming mould at certain section, makes the continuous deepening after curing in the intramode. Thus,the pultrusion products come out by this automatic production process. The common products like round rods, round tubes, flat bars, square tubes, angles, U-bars, joist steels,T profiles and other kinds of special profiles.

Characteristic

1). Corrosion resistant, light weight

2). Extremely strong and durable

3). High strength

4). Fire retardant

5). Good insulation

6). Good flexibility, corrosion resistant

Specification

Specification Item
Density ≥2.1g/cm3
Water Absorption <0.05 %
Tensile Strenth ≥1200 Mpa
Bending Strenth ≥900 Mpa
Flexural Strength in thermal state ≥300 Mpa
Water Diffusion Test (12 KV)1min <1 mA
Dye penetration pass after 15mins

Application: Electric switch,electrical insulation

Technique: Pultrusion

Material: Epoxy resin and fiberglass yarn

Color:Any

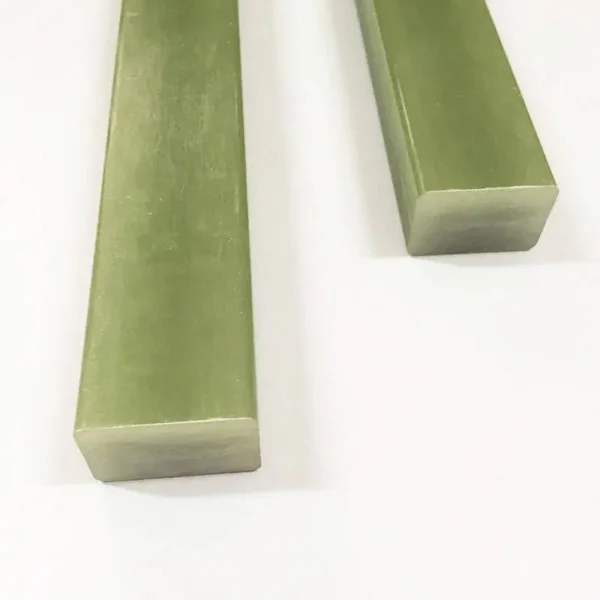

Square Rod Size:10x24mm,10x30mm,16x22mm 20x30mm and more, can open new mould as per the client’s request.
