FRP-01
FRP-01
Description

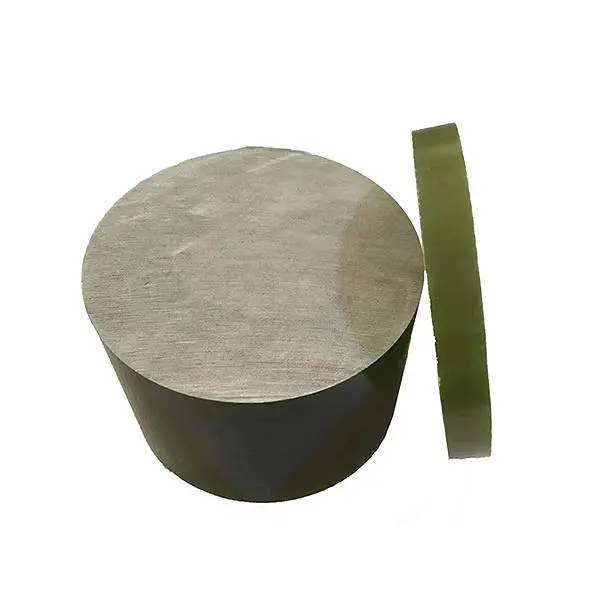

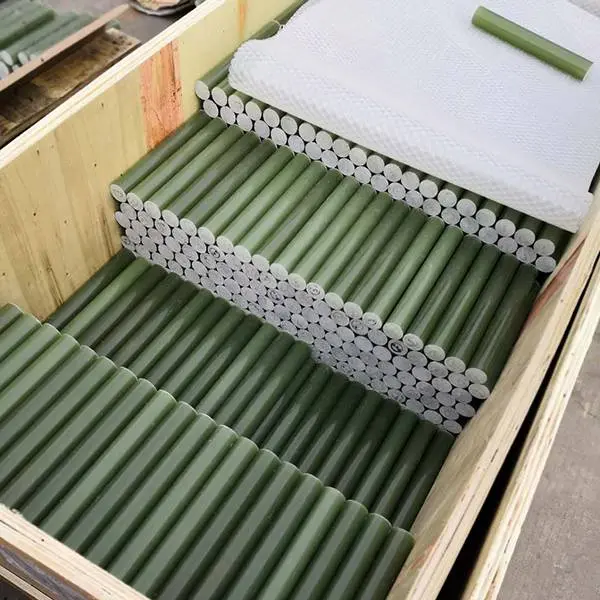

Epoxy Resin Fiber glass rod is adopt glass fiber steeped into epoxy resin pultrusion under high temperature, which as features – light weight,stable mechanical performance,high insulation performance in the range of 10KV to 1000KV.
Tensile strength can up to 1360Mpa
High-temperature rod,Acid-proof rod. This product can be used as the core rod of composite insulator, the vaulting pole of the arresters and the insulant of other high mechanical and electrical appliances.
Insulating Solid Rod is made of ECR glass reinforced epoxy resin.We use continuous pultrusion process .The products comply to the BS standards. Insulator core rods also are also called fiber glass rod, FRP rod, GRP rod, fiber glass bar, Insulation rod, fiber glass stick and so on. It is widely used in the electrical industry, our fiber glass epoxy resin rod products be exported to European Countries like France, Romania, Hungary and United Kingdom, and other countries like Vietnam.
Characteristic
1). Corrosion resistant, light weight
2). Extremely strong and durable
3). High strength
4). Fire retardant
5). Good insulation
6). Good flexibility, corrosion resisting
Specification
Dimeter of rounded rod: D16, D18, D20, D24, D26, D28, D30, D32, D34, D36, D40, D46, D50,D53, D55, D60, D68, D70, D80, D90, D96, D100, D110, D150 and so on
Length of Round rod: 200mm to 6000mm, it’s depend on customer’s request.
Also, can open new mould according to customer’s demand.
| Specification | Item |
| Density | ≥2.1g/cm3 |
| Water Absorption | <0.05 % |
| Tensile Strenth | ≥1200 Mpa |
| Bending Strenth | ≥900 Mpa |
| Flexural Strength in thermal state | ≥300 Mpa |
| Water Diffusion Test (12 KV)1min | <1 mA |
| Dye penetration | pass after 15mins |
Application:Polymer insulator/ Arrester/ Cut-out fuse
Technique:Pultrusion
Dimensions: 10-110MM
Material:Epoxy resin and Fiber glass
Color: Any
Type: Common rod, High-temperature rod, Acid-proof rod, Insulation Rod
